Findings from 14 GW of thermography in 17 countries
Insights gained while using the detection and classification analytics capabilities of the SenseHawk Digitization Platform at various sites across countries and technologies.
Hotspots impact site performance and safety
Hotspots in PV modules are a commonly encountered defect that significantly impact performance on sites large and small. Caused by a number of underlying defects, hotspots present with a wide variety of thermal signatures. While remediation is essential, the severity of the underlying defect is the primary determinant of the appropriate remediation action.
Hotspots can be broadly categorized into four types based on their cause:
Soiling/Shading: Hotspots caused by shading from vegetation, adjacent structures, module racks, debris on the surface, bird droppings and more
Mechanical damage: Hotspots caused by cracked and broken glass, improper handling and installation, physical impact damage,
Module/Cell defects: Hotspots caused by cell defects, cell cracks, delamination, bad solder joints, stuck bypass diodes, diode failures and more
Installation defects: Hotspots caused by unconnected strings and modules, reverse polarity
The focus of investigation and remediation action is always in the reverse order of defect types listed above, with the most bang-for-the-buck delivered by correcting installation defects and module/cell defects.
Hotspot causes can range from soiling and shading to mechanical damage and installation issues

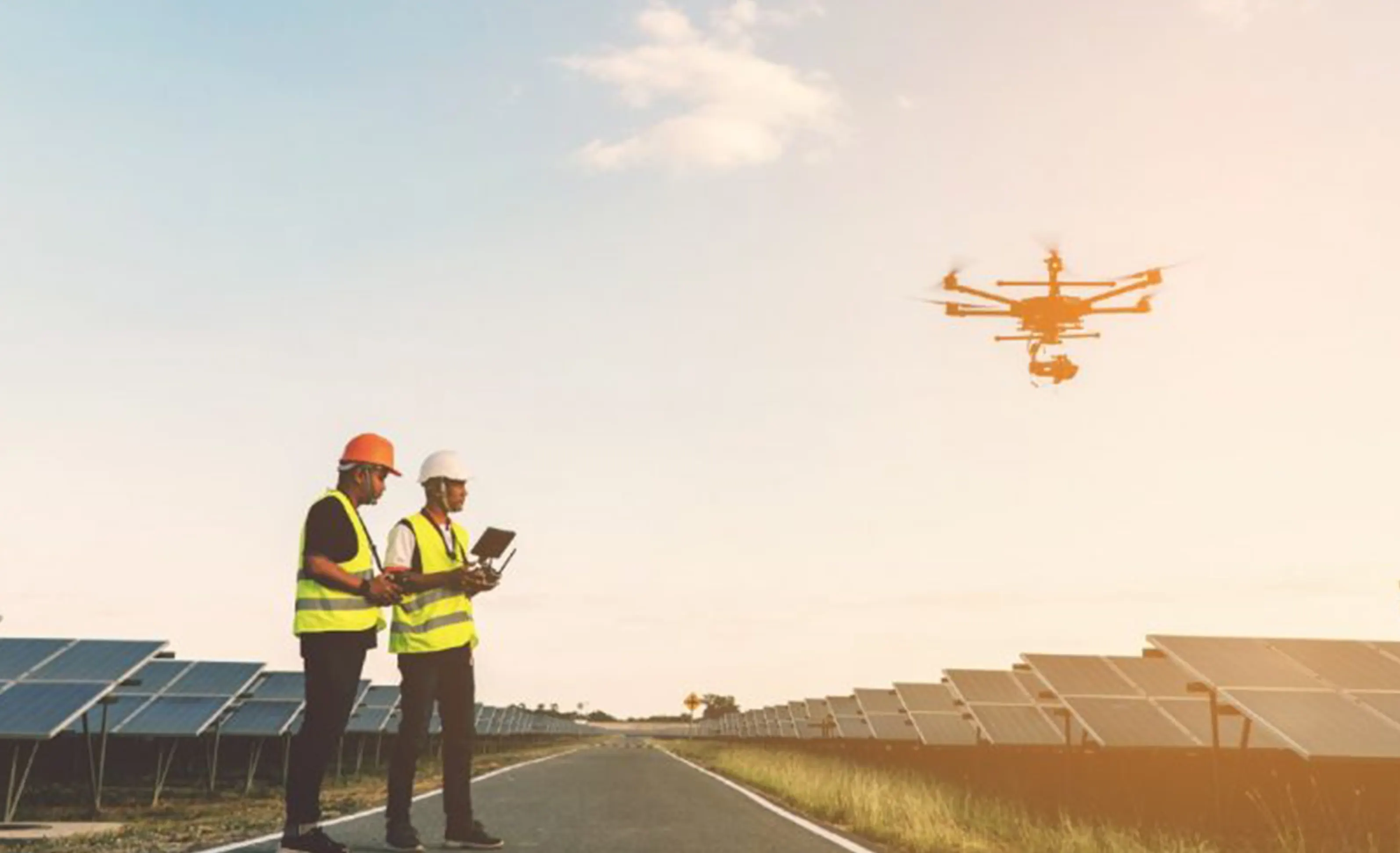

Beyond operational performance, hotspots also impact safety on sites as they can lead to runaway thermal events and fires. Hotspot detection and correction is, therefore, an important O&M activity on sites of all sizes. While annual hotspot checks are recommended, high costs often meant that sites were not checked completely to identify defects. This has changed with the development of drone-based thermal scanning procedures. What was once a manual job that took weeks is now completed in a matter of hours with drones, enabling single operators to thermally image over 50 MWp of installed solar PV in a single day.
Although data collection is simpler, the emphasis is now on accurately processing collected information to identify and classify hotspots. As operators start to rely solely on drone-based scans, accuracy of the results is the primary determinant of site performance and safety.
Using AI/ML-powered drone analytics, SenseHawk helps map, classify, and prioritize all site defects
SenseHawk’s findings from first 14 GW of thermography analytics
While processing 14 GW of thermal scans across sites of all sizes and technologies in 17 countries, SenseHawk continued to refine its detection and classification engines to ensure that nothing is ever missed. Constantly examining the data collected helps infer trends and spot areas for improvement.
Asset owners lose 2% of generation on average due to defects that can be detected easily with thermal scans.
The median loss observed was 1.4%, while the range was wide with the best performing site losing as little as 0.1% while the worst performing site was losing as much as 20%. Without considering outliers, the loss range was between 0.5 and 3%
Thermal scans at commissioning pay back instantly and should be a part of the handover/takeover process.
On newly constructed sites, an average loss of 2% was observed just from strings that were offline
Additionally, an average of 2200 modules qualified for warranty replacements per 100MWp of installed capacity
An average of 4 potentially hazardous defects (reversed strings/ short circuits) were detected per 100MWp
Minor defects with low delta T at commissioning often resulted in failures in the first year of operation, with the most common failure being burnt out interconnect solder
Broken/damaged modules were easily found at commissioning and could be flagged for replacement by the EPC
Single cell hotspots are a mixed bag.
Single cell hotspots displaying high delta T were often flagged for inspection. However, causes varied and a majority were caused by bird droppings, dust or vegetation shading. About 20-35% of single cell hotspots were caused by cell defects
Stuck open diodes are a common occurrence.
Between 400-3500 modules with stuck open diodes were observed per 100MWp on sites scanned. Of these, 80% were warranty replaceable with diode/junction box failures
Thermal defects occur as often on large sites as on small sites.
Defect density was not correlated to size of installation and small sites between 1 and 20MWp, with limited maintenance fared as well as sites that were 100MWp or larger
However, rooftops did not fare as well
Small rooftops fare poorly compared to larger sites.
The average rooftop site lost 4% of production due to thermal defects. Defect density correlated with the age of the site
Thermal scans pay back in as little as 3 months.
On utility scale sites, the pay back from thermal scans was within 3-5 months and was a function of the PPA rate and installation size
A map-based app with a defect location and management system improves outcomes.
In a number of sites, thermal scan results did not get the attention they deserved as field teams found it difficult to accurately locate and fix problems

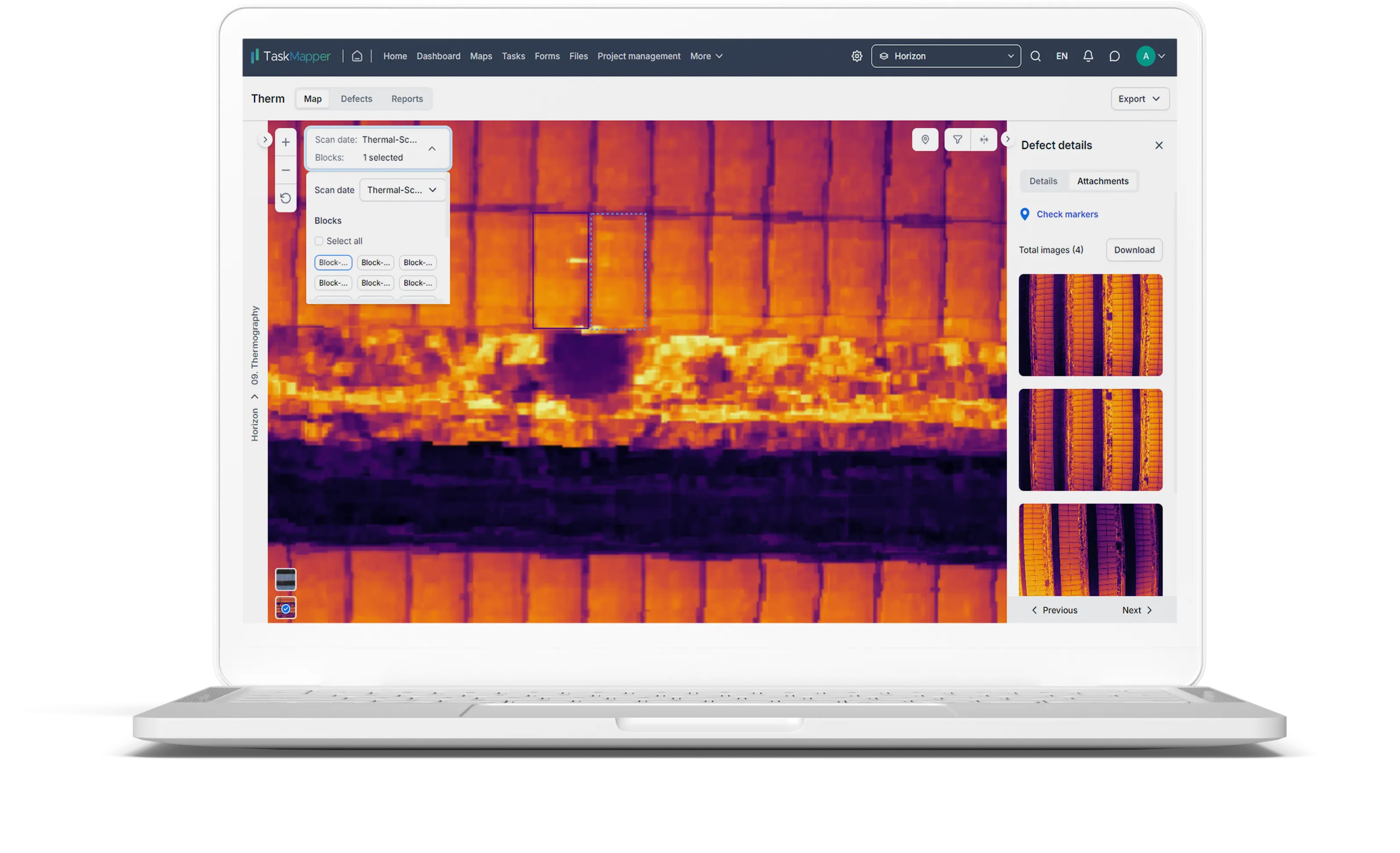

With the SDP desk and app companion products, resolution rates increased from 46% to 91% while resolution time per 100MWp reduced by 60%

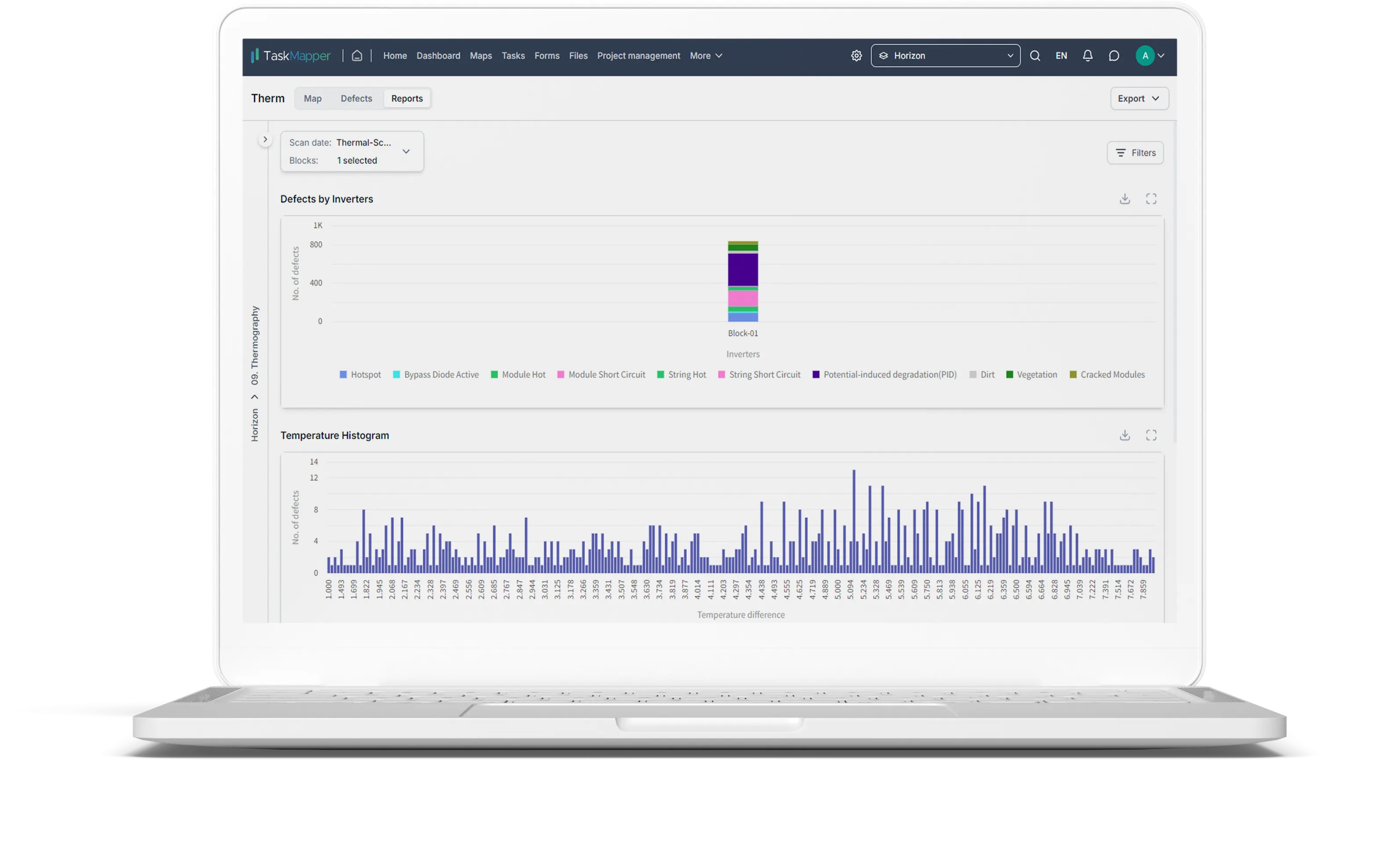

SenseHawk provides reports and analytics to examine the defect data and infer trends and areas for improvement
Best practices that are evident from the analysis
Based on the findings, SenseHawk recommends the following best practices:
Thermal drones should become an integral part of the solar PV commissioning and O&M toolkit.
An annual thermal scan should be a part of the Preventive Maintenance plan.
Annual scans can be coupled with on-demand scans based on specific production problems. These will need in-house drone capability.
Surveys should be scheduled immediately after module cleaning to eliminate dust and bird dropping related hotspots.
A platform approach to managing scan data with cloud-based software and analytics tools is critical.
Issue tracking software coupled with a map-based field app closely integrated with the analytics platform is critical to tracking, remediation, warranty claims, and long-term monitoring.
SenseHawk provides reports and analytics to examine the defect data and infer trends and areas for improvement
SenseHawk Therm
SenseHawk Therm helps optimize the performance of your solar asset through swift defect remediation. Powered by the SenseHawk Digitization Platform, Therm integrates aerial surveillance, AI/ML-driven data analytics, and work management software to speed up defect detection, classification, prioritization, and remediation.
