Solar energy plays a pivotal role in the transition towards sustainable power sources, with utility-scale solar projects being a cornerstone of this shift. One of the critical phases in the development of such projects is the interconnection process, which ensures that the generated solar power seamlessly integrates into the existing electrical grid. This blog delves into the intricacies of this process and explores how TaskMapper streamlines the process.

Overview of the Interconnection Process

The interconnection process for utility-scale solar projects involves several key steps, each essential for ensuring the project's compliance with technical standards and regulatory requirements. Here's a breakdown of these steps:

Point of Interconnection Identification: Identifying the point of interconnection (POI) is a crucial decision that impacts both the project's feasibility and interconnection costs. While smaller solar installations typically connect to distribution lines, larger utility-scale projects often require connection to substations or high-voltage transmission lines (69kV or higher) to minimize energy losses and ensure efficient power transmission.

Interconnection Application: Once the POI is determined, the developer submits a formal application to the utility company. This application includes comprehensive details about the solar project, such as its capacity, inverter specifications, and proposed POI location. This step initiates the formal engagement with the utility company for the interconnection process.

Feasibility Studies: Upon receiving the application, the utility conducts feasibility studies to assess the potential impact of the solar project on the grid. These studies analyze parameters such as power flow dynamics, grid stability, and power quality. Depending on the complexity of these studies, there may be associated fees that the developer needs to account for in their project budget.

Interconnection Agreement: Following the feasibility studies, the utility and the developer negotiate an interconnection agreement. This agreement outlines technical requirements, financial responsibilities, and commercial terms for connecting the solar farm to the grid. It serves as a legally binding document that governs the entire interconnection process, ensuring clarity and accountability from both parties.

System Design and Construction: With the interconnection agreement in place, the developer proceeds with finalizing the design of the solar power plant and commencing construction. This phase involves installing interconnection facilities such as transformers, metering equipment, and potentially new transmission lines, depending on the chosen POI and grid requirements.

Synchronization and Testing: Once construction is complete, the utility performs synchronization tests to ensure that the solar plant meets all safety and performance standards before it can be connected to the grid. This final step is crucial for verifying the reliability and compatibility of the solar project with the existing electrical infrastructure.

Additional Considerations: In addition to the core steps outlined above, several other factors influence the interconnection process for utility-scale solar projects:

• Regulatory Compliance: Adherence to local and federal regulations is paramount and dictates specific requirements that developers must fulfill during the interconnection process.

• Interconnection Costs: Costs associated with interconnection can vary significantly based on factors such as distance to the POI, necessary grid upgrades, and fees for feasibility studies and applications.

TaskMapper: Simplifying the Interconnection Process

Navigating the complexities of the interconnection process can be streamlined with tools like TaskMapper, which offers digital solutions for mapping, automating workflows, and managing documentation. Here’s how TaskMapper can assist:

Maps for Visualization

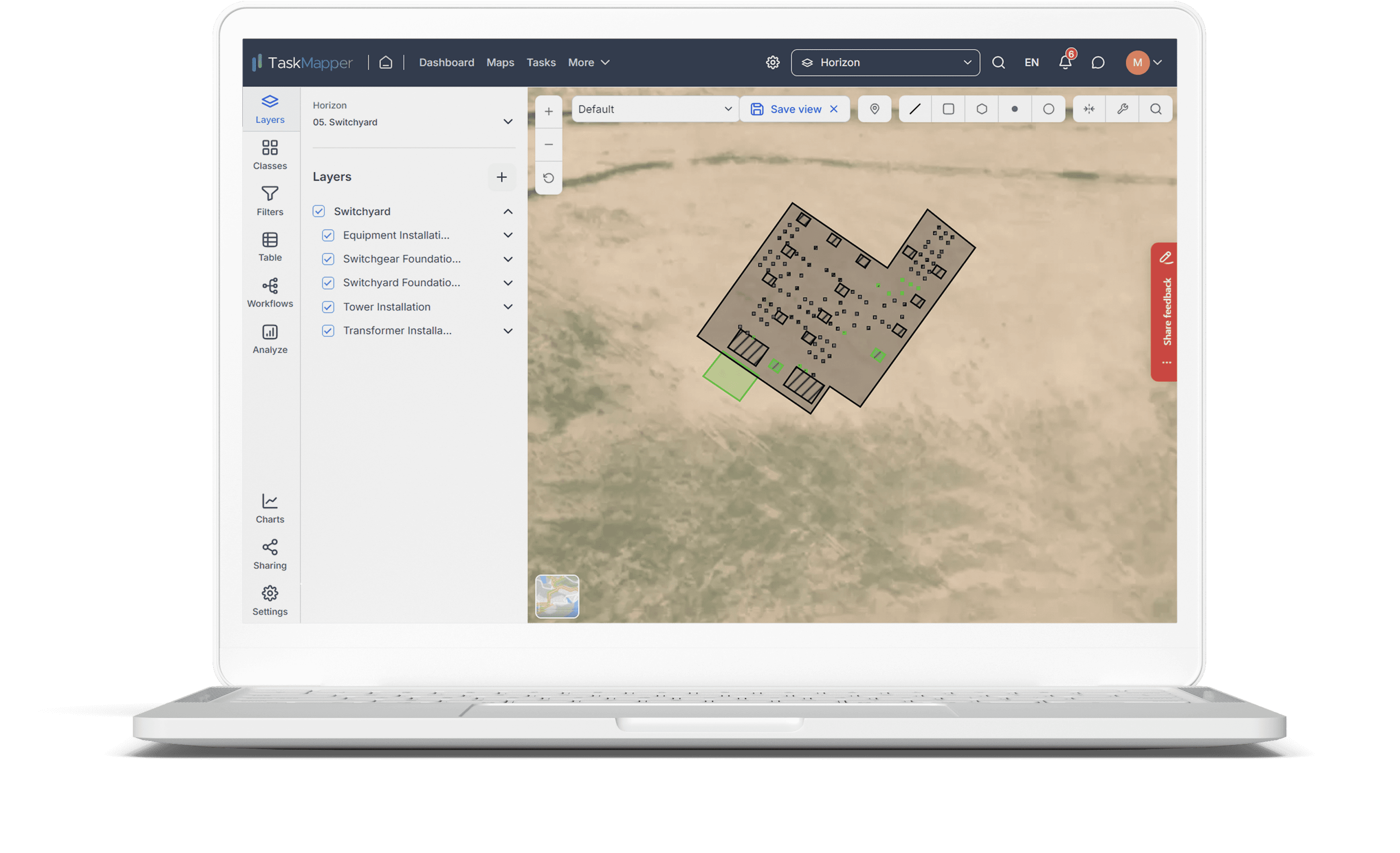

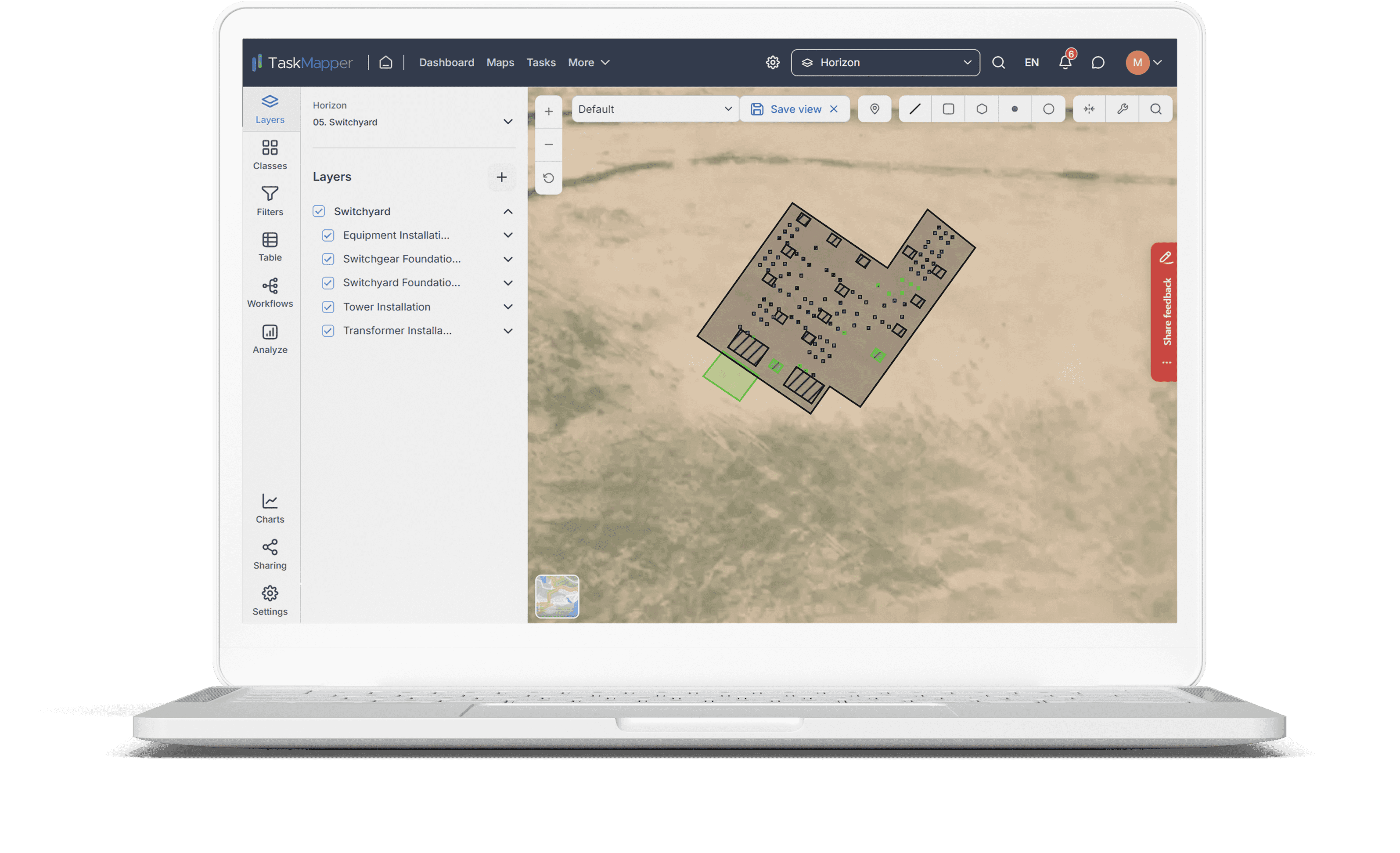

TaskMapper utilizes maps to visualize transmission infrastructure and track the progress of construction for various components, ensuring clarity and oversight throughout the project.
